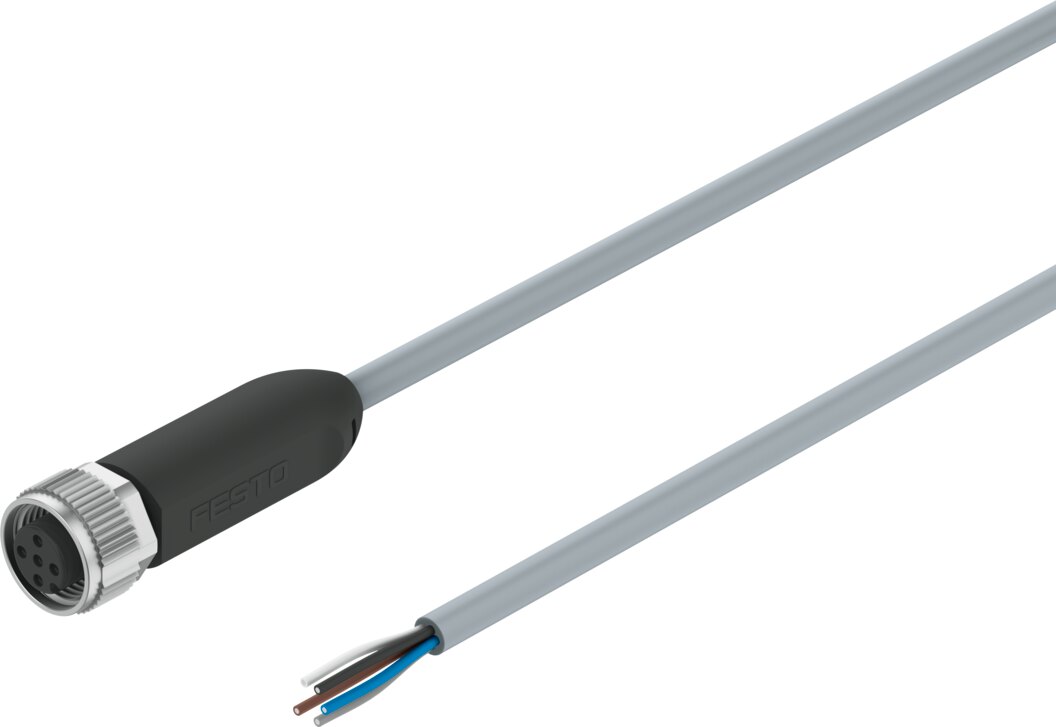

8078243 Соединительный кабель NEBA-M12G5-U-5-N-LE5

UKCA marking (see declaration of conformity): To UK RoHS instructions
Material seals: FPM
Material housing: TPE-U(PUR)
Conforms to standard: EN 61076-2-101 EN 61984
Approval: c UL us listed (OL)
Intended use: The connecting cable connects eld devices (sensors, actuators) with controllers.
Explosion protection: Zone 2 (ATEX) Zone 22 (ATEX)
Certicate issuing authority: UL E253748
Cable designation: Without inscription label holder
Frequency of connection: 100.0
Product weight: 142 g
Instructions on use: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo. Only energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo.
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connector system: M12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores: 5.0
Electrical connection 1, used connections/cores: 5.0
Electrical connection 1, type of mounting: Screw-type lock with 13 mm hexagon and longitudinal knurl Rotatable
Electrical connection 1, compatible type of mounting: Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 1, terminal allocation: Pin 1 = BN Pin 2 = WH Pin 3 = BU Pin 4 = BK Pin 5 = GY
Electrical connection 1, display: None
Electrical connection 2, function: Controller side
Electrical connection 2, connection type: Cable
Electrical connection 2, connector system: Open end
Electrical connection 2, number of connections/cores: 5.0
Electrical connection 2, used connections/cores: 5.0
Electrical connection 2, terminal allocation: Pin 1 = BN Pin 2 = WH Pin 3 = BU Pin 4 = BK Pin 5 = GY
Electrical connection 2, display: None
Operational voltage range DC: 0 V...60 V
Operational voltage range AC: 0 V...48 V
Current rating at 40°C: 4 A
Immunity to surge: 1.5 kV
Cable length: 5 m
Cable characteristic: Suitable for energy chains/robot applications Abrasion-resistant Low adhesion Flame-retardant and self-extinguishing
Test conditions cable: Test conditions on request Torsional strength: > 300,000 cycles, ±270°/0.1 m Flexural strength: >50000 cycles, bending radius 5 mm Energy chain: > 5 million cycles, bending radius 28 mm
Notes on test conditions cable: Tested at 23 °C
Bending radius, xed cable: 14 mm
Bending radius, moving cable: 46 mm
Cable diameter: 4.5 mm
Cable structure: 5 x 0.25 mm²
Nominal cross section conductor: 0.25 mm²
Wire ends: Sheath removed Cut off bluntly
Degree of protection: IP65 IP68 IP69K
Special characteristics: UV resistant Hydrolysis-resistant Resistant to cooling lubricants Resistant to microbes Oil resistant Ozone-resistant
Outdoor applications: Application areas with direct exposure to outdoor climatic inuences Class D1 based on IEC 60654-1
Ambient temperature: -40 °C...85 °C
Note on ambient temperature: -40 - 50 °C for UL applications
Ambient temperature with moving cable: -20 °C...85 °C
Note on the ambient temperature with exible cable installation: -20 - 50 °C for UL applications
Storage temperature: -25 °C...55 °C
Note on storage temperature: Temporarily during transport in packaging -40 ... 85 °C
Relative air humidity: Max. 93% at 40 °C
Nominal altitude of use: <= 2000 m NHN
Overvoltage category: II
CE mark (see declaration of conformity): In accordance with EU RoHS Directive
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom class: Class 4 according to ISO 14644-1
Note on materials: CFC-free RoHS-compliant Cadmium-free Free of halogen Free of phosphoric acid ester
Pollution degree: 3.0
Corrosion resistance class CRC: 1 - Low corrosion stress
Material cable sheath: TPE-U(PUR)
Cable sheath colour: Grey
Housing colour: Black
Material screw-type lock: Die-cast zinc, nickel-plated
Material electrical contact: Gold-plated copper alloy
Material insulating sheath: PP
